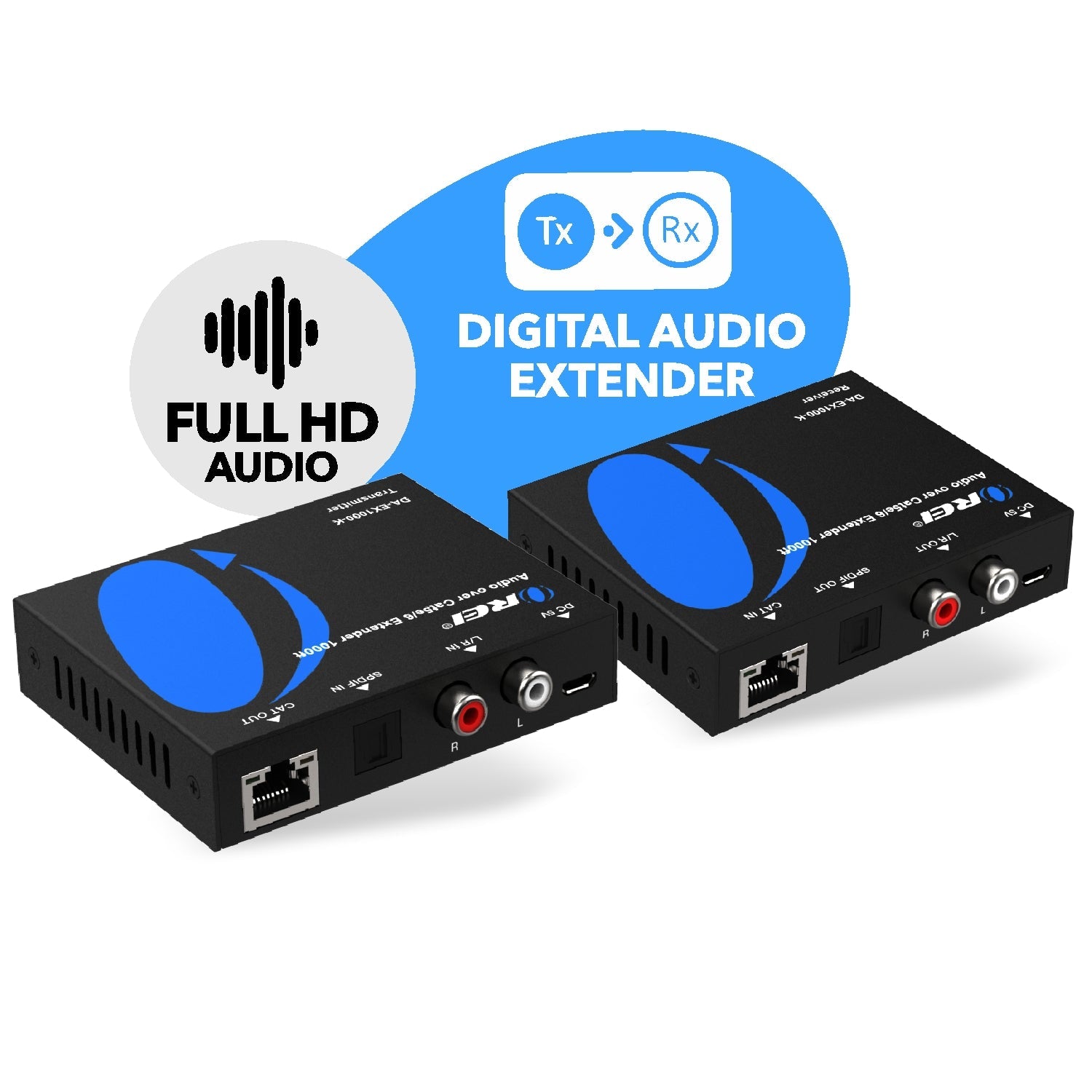

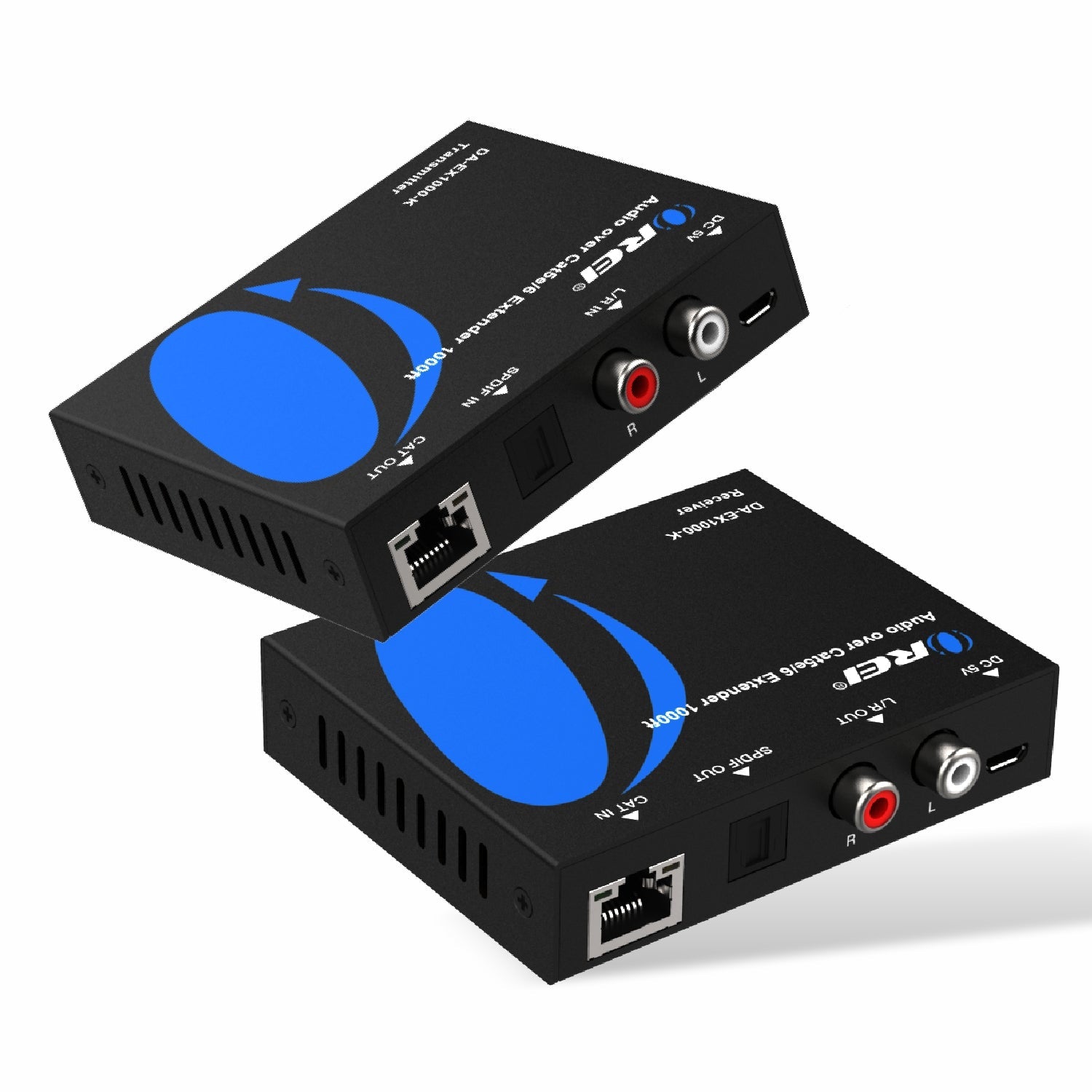

OREI DA-EX1000-K: The Ultimate Digital Audio Extender

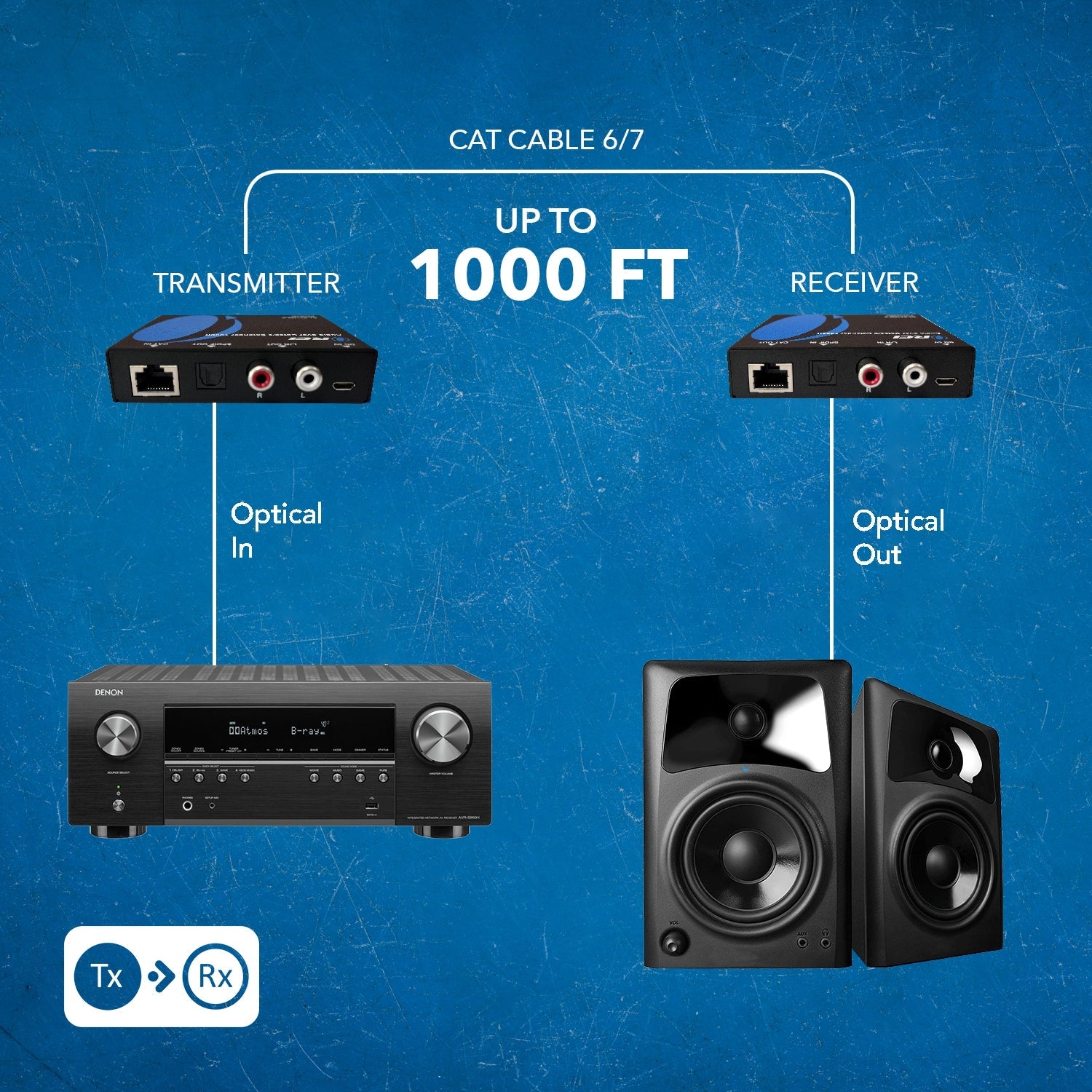

Key Features: • Extend digital audio up to 1000 feet over Cat5e/6 cable The OREI DA-EX1000-K Digital Audio Extender is a game-changer for your home audio setup. With its impressive range and high-quality audio support, you can now enjoy your favorite tunes throughout your home theater or speakers, no matter where your media devices are located.
Perfect for home theater enthusiasts, this extender allows you to keep your media devices neatly tucked away in the media closet while still delivering exceptional audio performance. Whether you're watching a movie, listening to music, or playing games, the OREI DA-EX1000-K ensures that you never miss a beat.
[summary]
• Optical/Coxial Digital Audio Extender [/summary]
[tab]
AUDIO AND VIDEO Transmitter: INPUT PORTS: 1x Optical (Toslink) 1x Coaxial SPDIF RCA OUTPUT PORTS: 1x RJ45 Receiver: INPUT PORTS: 1x RJ45 OUTPUT PORTS: 1 ¡Á Optical (Toslink) 1x Coaxial SPDIF RCA 1x Analog Stereo 3.5mm Audio Jack
EXTENDING DISTANCE AUDIO OUTPUT Supported Audio Formats: LPCM, DTS, Dolby Digital and Dolby Digital Plus when used as a straight digital in/digital out extender Sample Rates: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz up to 24-bit resolution Bitrate over Distance: 192kHz - 100m, 96kHz - 150m, 48kHz - 300m

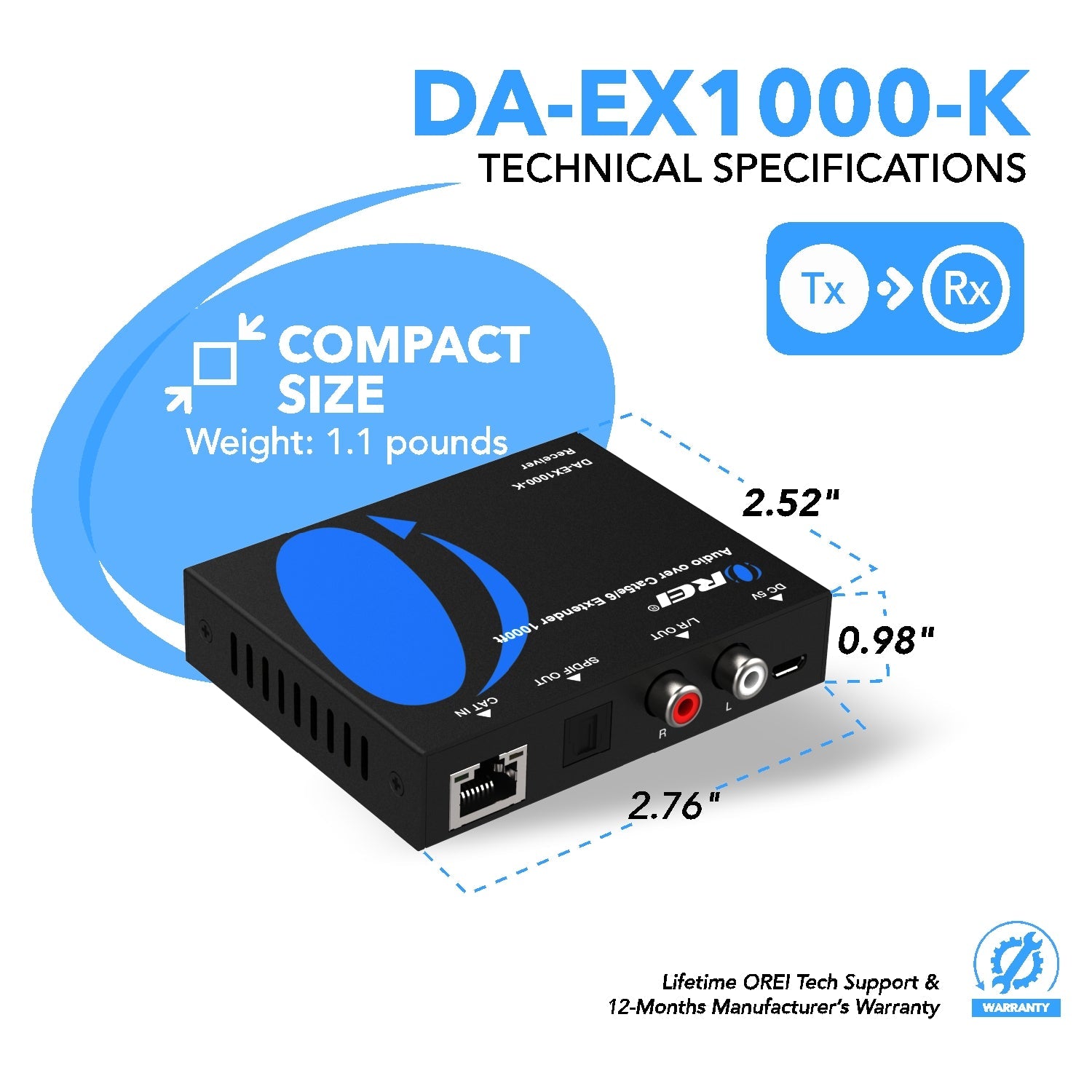

DIMENSIONS & WEIGHT Casing-Dimensions: Height: 64mm Width: 69mm Depth: 24mm Dimensions-with connections: Height: 64mm Width: 76mm Depth: 28mm Weight: 400g
PROTECTION Operation Temperature: 0¡ãC ~ 40¡ãC / 32¡ãF ~ 104¡ãF Storage temperature: -20¡ãC ~ 60¡ãC / -4¡ãF ~ 140¡ãF Relative Humidity: 20~90% RH (non-condensing) ESD Protection: Human-body Model: ¡À8kV (Air-gap discharge), ¡À4kV (Contact discharge) Electrostatic Protection of the whole Machine: Human-body Model: ¡À8kV (Air-gap discharge), ¡À4kV (Contact discharge)
POWER PHYSICAL PROPERTIES Color: Black Housing: Metal Enclosure
PACKAGE CONTENTS 1x Audio Transmitter 1x Audio Receiver 1x 5V/1A Power Supply 4x Mounting Ears 1x User Manual
WARRANTY 1 - Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs Can I purchase the replacement parts such as power adapter, receiver/transmitter or IR Kit from OREI Yes, you can purchase these things directly from us. Please contact us & we will assist you further.
Can I extend multiple screen with this product No, this product doesn not extend multiple screens. It will duplicate the input sources to multple outputs.
Can I extend beyond the mentioned distance Yes, you will be able to get a signal beyond the mentioned distance but the quality of the video decreases with increase in the distance and that too when using with shielded CAT6 cable.
Can I input the output of this product to another extender similar to daisy chain method Yes, you can implement the daisy chain method.
What is the recommended type of CAT cable Both the ends of the CAT cable should be termed as EIA-568B & the cable should be straight & not crossed.
What types of HDMI & CAT cables I should use with this product We recommend you to use High-Quality HDMI cables & shielded CAT6 cables.
Can I purchase additional transmitter Yes, you can purchase the additional transmitter from us. Please contact us & we will let you know the price.
Can I purchase additional receivers Yes, you can purchase the additional receiver from us. Please contact us & we will let you know the price.
Up to what length I can extend this product You can extend the display devices up to 1000 Feet when using with a shielded CAT6 cable.
I am not getting signal with CAT5e cable but when I switch to CAT6, the issue gets resolved. How to make this unit work with CAT5e The issue might be with the CAT cable. This might be due to the external interference of the signals & CAT5e has low bandwidth as compared to the CAT6. We recommend you using shielded CAT6 cable.
How to know if the extender is dead If the power and link led lights does not illuminate on the RJ45 port of the transmitter and the receiver, then the transmitter & receiver might be dead.
Please contact us so that we can troubleshoot the issue.
[/tab1]
[shortdes]

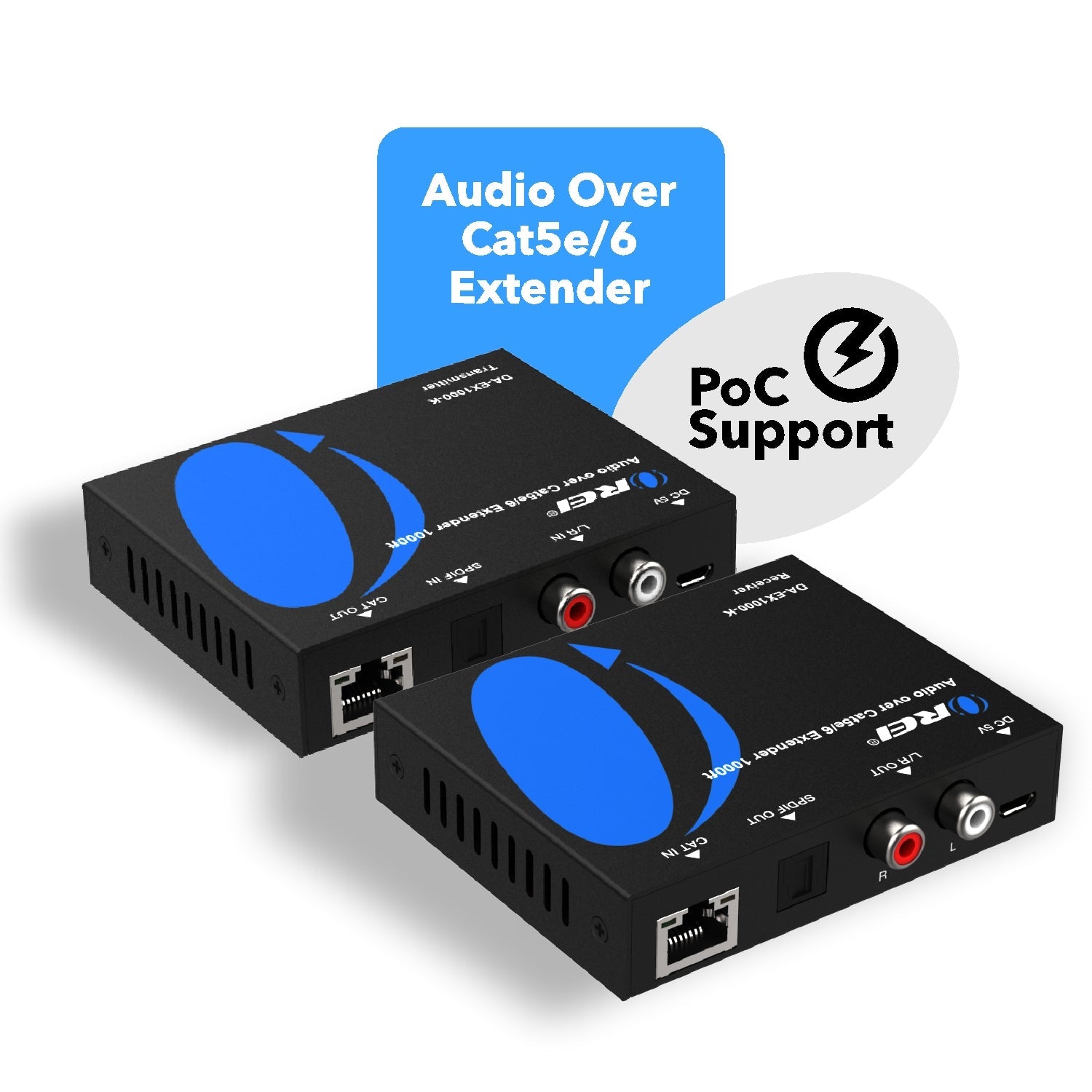

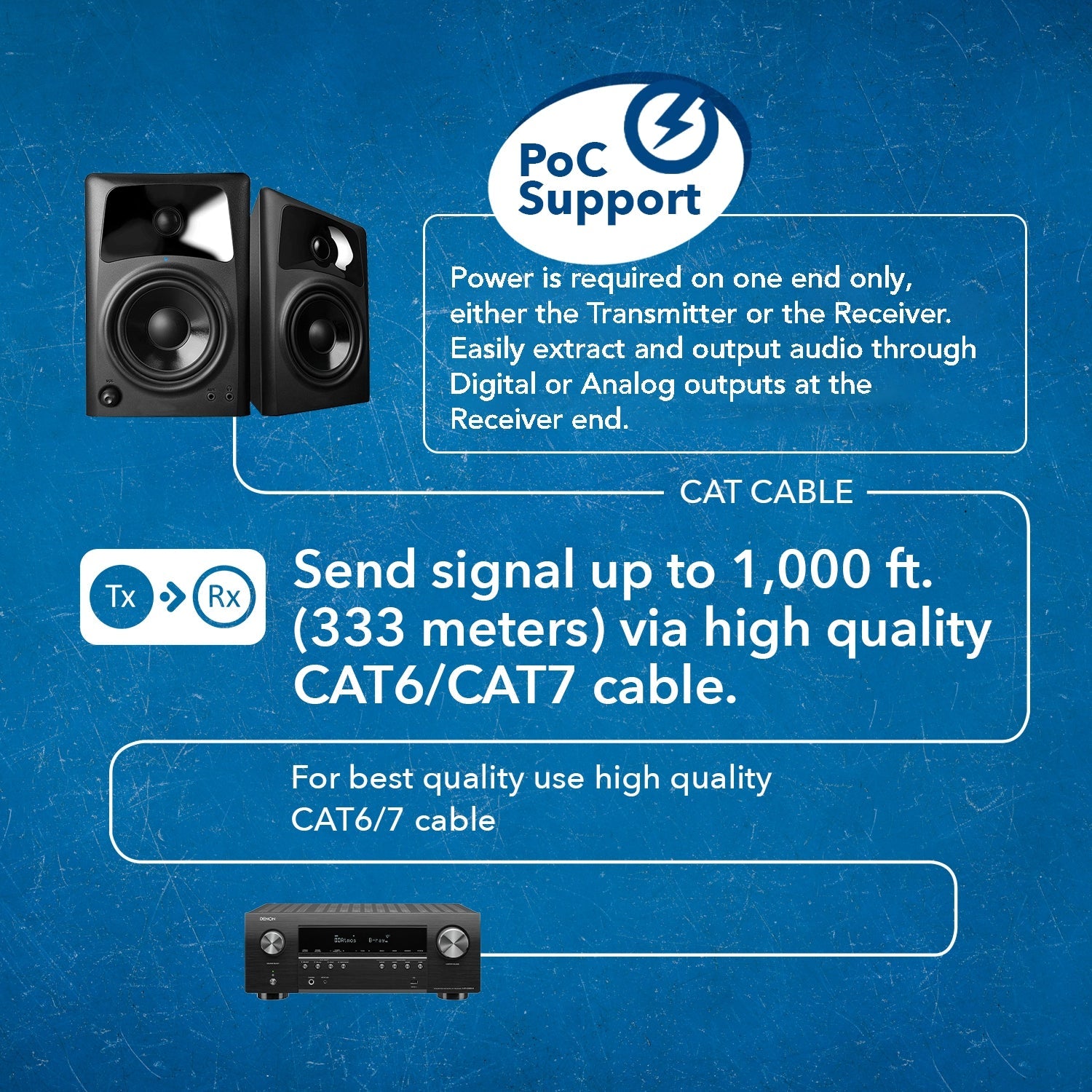

Optical/Coxial Digital Audio Extender Supports one-way PoC function (from receiver to transmitter) Supports SPDIF Optical Toslink Digital Audio and Coxial 5.1 Channel [/shortdes]
The OREI DA-EX1000-K Digital Audio Extender is perfect for home theater enthusiasts who want to enhance their audio experience. With its ability to extend digital audio up to 1000 feet over Cat5e/6 cable, you can keep your media devices in the media closet and still enjoy high-quality sound throughout your home. The extender supports SPDIF Optical Toslink Digital Audio and Coaxial 5.1 Channel, delivering full HD audio. It also features one-way Power Over Cable (PoC) function, making it easy to set up. The casing is 64mm high, 69mm wide, and 24mm deep, with a weight of 400g. It comes with a 1-year manufacturer's warranty and includes 1x Audio Transmitter, 1x Audio Receiver, 1x 5V/1A Power Supply, 4x Mounting Ears, and 1x User Manual.
