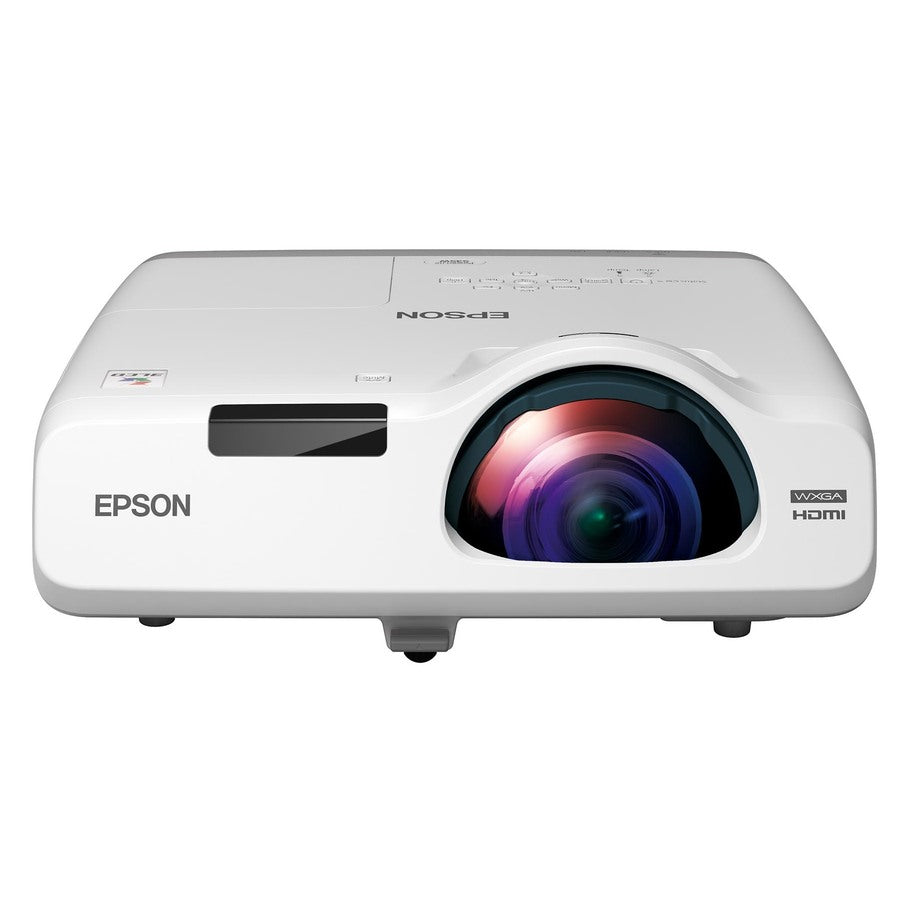

Epson Ultra-Bright Short-Throw WXGA Projector
Transform your presentations and classrooms with the Epson Ultra-Bright Short-Throw WXGA Projector. With a short throw distance, it's perfect for classrooms, rear projection, and more. • Ultra-bright 3400 lumens lamp for vivid images • 1280 x 800 HD widescreen resolution for immersive viewing • Wireless projection from various devices for added convenience. Get yours now and experience the difference!
- Short-throw design
- 3LCD, 3-chip technology
- 16:10 Native Aspect ratio
Make your presentations larger-than-life and offer engaging classrooms with the ultra-bright, widescreen short-throw projector, the EPSON PowerLite for reliable performance.
SPECIFICATIONS:
Model No: V11H671020
Image Display
Display System: 3-Chip Polysilicon TFT LCD
Native Chip Resolution: 1280 x 800 (WXGA)
Supported Resolutions: VGA - 640 x 480
SVGA - 800 x 600
SXGA - 1152 x 864
XGA - 1024 x 768
SXGA2 - 1280 x 960
SXGA3 - 1280 x 1024
WXGA 60-1 - 1280 x 768
WXGA 60-2 - 1360 x 7680
WXGA+ - 1440 x 900
SXGA+ - 1400 x 1050
UXGA - 1600 x 1200
Maximum Brightness: 3400 Lumens
Aspect Ratio: Native: 16:10, Supported: 4:3, Supported: 16:9
Dynamic Contrast Ratio: 16,000:1
Color Depth: 10-Bit (1.07 Billion Colors)
Projection Method: Front / rear / ceiling mount
Pixel Number: 1,024,000 dots (1280 x 800) x 3
Color Brightness - Color Light Output: 3400 lumens
White Brightness - White Light Output: 3400 lumens
Lamp Type: 215 W UHE
Lamp Life: ECO mode: Up to 10,000 hours, Normal mode: Up to 5000 hours
Throw Ratio Range: 0.48 ¨C 0.65
Size - projected distance: 53' ¨C 116' (1.35 to 2.95 m)
Keystone Correction: Manual- Vertical: ¡À15 degrees, Horizontal: ¡À15 degrees
Contrast Ratio: Up to 16000:1
Color Reproduction: Up to 1.07 billion colors
Projection Lens:
Type: No optical zoom / Manual focus
F-number: 1.60
Focal Length: 6.4 mm
Zoom Ratio: Digital zoom 1.0 1.35
Projector Details:
Display Performance: NTSC: 480 lines, PAL: 576 lines
Input Signal: NTSC / NTSC4.43 / PAL / M-PAL /N-PAL / PAL60 / SECAM
Interfaces:
- Computer / Component video: D-sub 15 pin x 2
- S-video: Mini DIN x 1
- Composite video: RCA (Yellow) x 1
- Audio in: RCA x 1 (L and R), mini stereo x 2
- USB connector: Type B x 1 (USB display, audio and mouse control)
- USB connector: Type A x 1 (USB memory / document camera)
- HDMI x 1
- RJ-45 x 1
- Serial: RS-232c x 1
- Monitor out: D-sub 15 pin x 1
- Audio out: Mini stereo x 1
- Microphone: Mini stereo x 1
- Wireless LAN port: 802.11 b/g/n (optional module sold separately)
Speaker: 16 W (mono)
Fan Noise: ECO mode: 29 dB, Normal mode: 37 dB
Remote Control:
Features: Source search, video, LAN, computer, USB, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions, user, esc
Operating Distance: 19.7 ft (6 m)
Operating Angle: Upper / Lower: 10 to ¡À 60 degrees, Right / Left: ¡À 30 degrees
Projector Dimensions:
Including feet: 13.5' x 12.7' x 5.2' (W x D x H)
Excluding feet: 13.5' x 12.7' x 3.7' (W x D x H)
Temperature: 41¡ã to 95¡ã F (5¡ã to 35¡ã C)
Weight: 8.2 lb
Power Supply Voltage: 100 ¨C 240 V, ¡À10%, 50/60 Hz
Security: Kensington -style lock provision, Padlock and security cable hole, Password protection function
WHAT'S IN THE BOX:
1 x Epson PowerLite 535W projector
1 x Lens cover
1 x Power cord
1 x Computer cable (VGA)
1 x Projector remote control
1 x Batteries
1 x User manual CD
1 x Projector software CD
1 x Quick Setup Sheet
1 x Password protection sticker
Warranty: 2 Year
The Epson Ultra-Bright Short-Throw WXGA Projector is a great choice for classrooms, rear projection, and other applications where the projector must be placed close to the screen. It has a short throw distance and can produce a 106'-diagonal image with a 28' throw distance. The 3LCD imaging device has a native resolution of WXGA (1280 x 800) and is powered by a lamp that produces 3400 lumens at its brightest setting. It can scale non-native resolutions from SD (480p) to UXGA in addition to WXGA (1600 x 1200). The projector is easy to use and comes with a remote control. It has a variety of inputs and outputs, including VGA, HDMI, USB, and Ethernet. It also has a built-in speaker and microphone input. The projector is lightweight and portable, weighing only 8.2 lb. It measures 13.5' x 12.7' x 5.2' (W x D x H) including the feet and 13.5' x 12.7' x 3.7' (W x D x H) excluding the feet.
