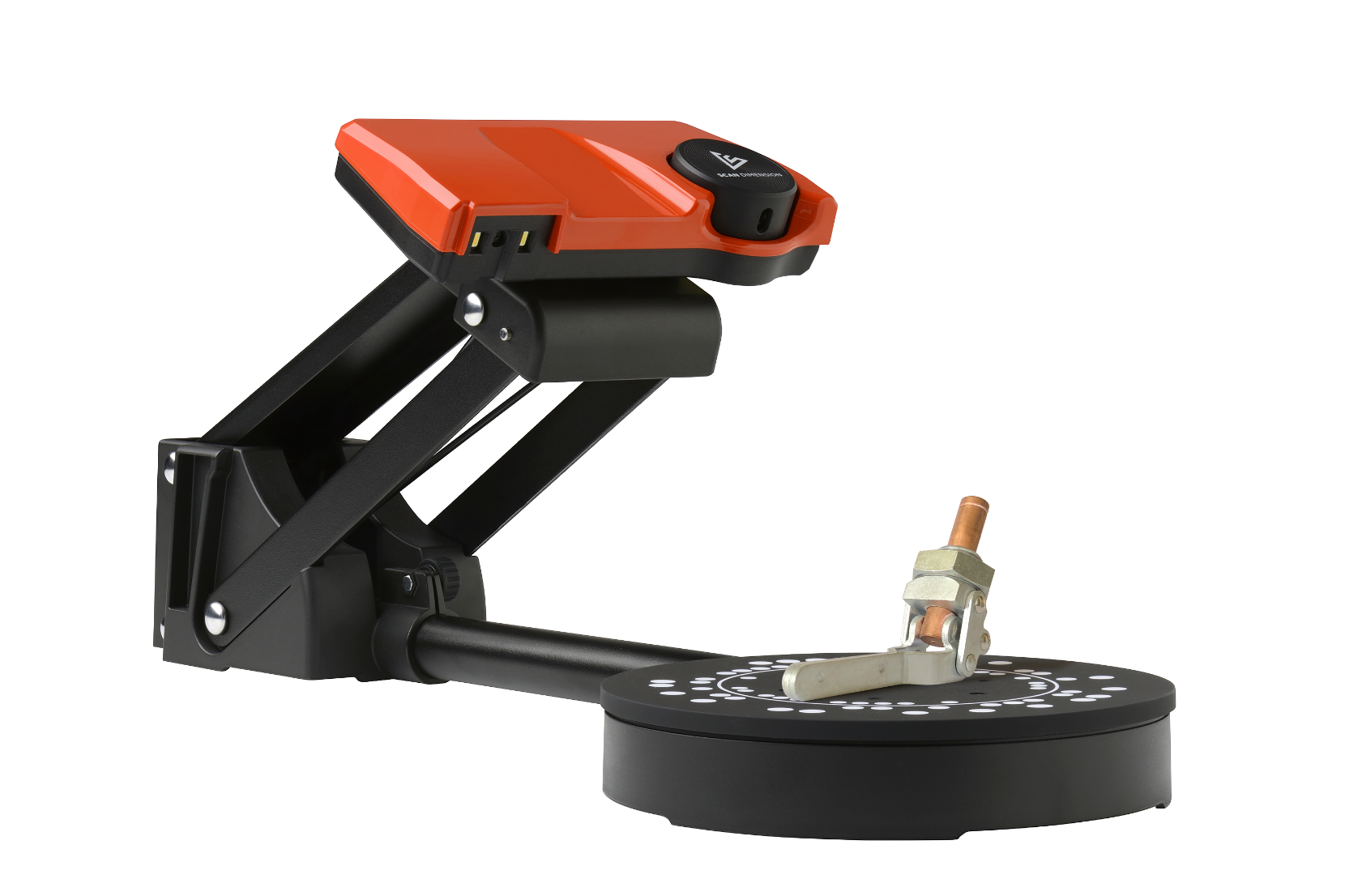

Sol Pro 3D Scanner - Precision Redefined
Automate Your 3D Scanning: Calibrate, Scan, Mesh with Ease
The Sol Pro 3D Scanner is your ultimate solution for high-quality, precise 3D scans. Its compact size and lightweight design make it easy to use for a variety of tasks, including quality assurance, product inspection, prototyping, and 3D printing.
• High-Accuracy Scanning: Achieve up to 0.05 mm accuracy for detailed scans.
• Turbo Scanning Mode: Complete a 360° scan in just 8 minutes, including calibration and meshing.
• Versatile Software: Downloadable software for MAC OS and Windows 10. Choose between accuracy and speed with a single click.
This scanner seamlessly integrates into any 3D workflow, delivering precision and quality for all your projects. The Sol Pro Creator software includes highly automated features for finished 3D scanning results, with no need for manual alignment or artifact removal. Aligning up to 5 scanning passes and meshing is fully automated, and the intuitive software includes innovative options for optimized scanning of dark or partially dark surfaces.
The Sol Pro Viewer software lets you view 3D scanned models in different renderings and export to various third-party 3D software for further editing, measuring, or 3D printing.
SPECIFICATIONS
Maximum size of object (diameter x height) | 170x170 mm (6.7x6.7 in) |
Minimum size of object (diameter x height) | 20x20 mm (0.8x0.8 in) |
Maximum weight on turntable | 2 kg (4.4 lbs) |
Maximum accuracy | 0.05 mm (0.002 in) |
Point distance | > 0.26 mm |
Camera resolution | 8 MP optical compensated |
Calibration | Automatic |
Process time per complete 360° scanning pass (calibrate, scan, mesh) | Scanning at normal speed: 15 min. / Scanning at turbo speed: 8 min. (Depending on computer hardware and object complexity) |
Export file types | OBJ, STL, PLY, DAE, XYZ |
Data transfer | USB 3.0 |
Texture/colors | Yes |
Appending/adding scans | Yes, automatic global alignment of added scans |
Software updates | Yes (requires registration of scanner) |
Tent dimension (LxWxH) | 62x35x32 cm (24.4x13.8x12.6 in) |
Box dimension (LxWxH) | 41x15x30 cm (16.1x5.9x11.8 in) |
SYSTEM REQUIREMENTS
Supported operating systems | Windows 10 64-bit (x64) MacOS Mojave, or newer |
Graphics card | Minimum 2 GB memory, must support OpenGL 3.3 or higher (Support for OpenCL 1.2 or higher is recommended) |
Recommended hardware | 2.4 GHz processor, 8 cores (16 logical processors), 32 GB RAM, 100 GB free disk space (system drive) |
Minimum hardware | 2.9 GHz processor, 4 cores (8 logical processors), 16 GB RAM, 25 GB free disk space (system drive) |
Power input | USB 3.0 (maximum 800 mA) |
Internet | Required |
WHAT'S IN THE BOX
Sol Pro 3D scanner
Turntable
Scanner stand
USB 3.0 cable
Blackout tent
Cylindrical target for high accuracy profiling
Software available for download: Sol Pro Creator and Sol Pro Viewer
Easy upload to Sketchfab
Manufacturer warranty
Return Policy:
In the case of buyer's remorse, products can only be accepted for unopened products, customer pays for shipping and 15% restocking fees will apply.
The Sol Pro 3D Scanner is perfect for professionals in quality assurance, product inspection, prototyping, and 3D printing. Its compact size (Tent dimension: 62x35x32 cm) and lightweight design make it easy to use. With a maximum object size of 170x170 mm and a maximum weight on the turntable of 2 kg, it can handle a variety of objects. Achieve high-accuracy scans with up to 0.05 mm precision and choose between normal speed (15 min for a 360° scan) or turbo speed (8 min for a 360° scan). The scanner comes with Sol Pro Creator and Sol Pro Viewer software for MAC OS and Windows 10, and includes features like automatic calibration, global alignment of added scans, and optimized scanning for dark surfaces.
