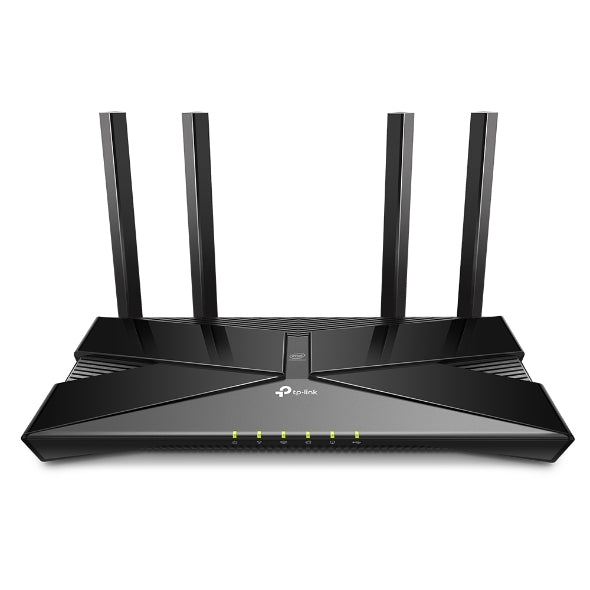

TP-Link Archer AX3000: Next-Level Dual Band Gigabit Wi-Fi Router
Upgrade your home Wi-Fi with the Archer AX3000! This next-gen dual band Gigabit Wi-Fi 6 router from TP-Link is a game-changer. It's easy to set up and use, and it can help you reach incredible speeds of 3 Gbps, taking your browsing, streaming, downloading, and gaming to new heights.
• 4 antennas work in sync with Beamforming technology to focus signal strength on every device connected to the network.
• The revolutionary OFDMA tech eliminates data traffic congestion and delivers superior speeds to multiple devices connecting simultaneously.
• Backward compatible with all previous 802.11 standards and Wi-Fi devices.
With features like ultra-low latency, focused signal strength, OFDMA for congestion management, a Tether App for easy setup, use, and control, and perfect for 8K/4K streaming and intense online gaming, the Archer AX3000 is a must-have for any home network.
Specifications:
WIRELESS
Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
Wi-Fi Speeds: AX3000, 5 GHz: 2402 Mbps (802.11ax, HE160), 2.4 GHz: 574 Mbps (802.11ax)
Wi-Fi Range:
3 Bedroom Houses
Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range
High-Power FEM
Improves transmission power to strengthen signal coverage
Wi-Fi Capacity:
High
Dual-Band
Allocate devices to different bands for optimal performance
4¡Á4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth
Working Modes: Router Mode, Access Point Mode
HARDWARE
Processor: Powerful CPU
Ethernet Ports: 1 x Gigabit WAN Port, 4 x Gigabit LAN Ports
Buttons: WPS Button, Reset Button
Power: 12 V 1.5 A
SECURITY
Wi-Fi Encryption: WPA, WPA2, WPA/WPA2-Enterprise (802.1x), WPA3 (V2.0)
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Guest Network: 1¡Á 5 GHz Guest Network, 1¡Á 2.4 GHz Guest Network
VPN Server: OpenVPN, PPTP VPN Server, L2TP VPN Server
VPN Client: OpenVPN, PPTP VPN Server, L2TP VPN Server
SOFTWARE
Protocols: IPv4, IPv6
OneMesh : OneMesh Supported, Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
EasyMesh: Mesh networking creates smooth, fast, stable roaming. ArcherAX3000 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.
Parental Controls: URL Filtering, Time Controls
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service: QoS by Device
Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS
NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Servers
IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP: Address Reservation, DHCP Client List, Server
DDNS: TP-Link, NO-IP, DynDNS
Management: Tether App, Webpage
OTHERS
Dimensions (W¡ÁD¡ÁH): 6.5 ¡Á 6.2 ¡Á 1.8 in
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
Operating Temperature: 0¡æ~40¡æ (32¨H ~104¨H)
Storage Temperature: -40¡æ~70¡æ (-40¨H ~158¨H)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
Wi-Fi Transmission Power:
CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
Wi-Fi Reception Sensitivity:
2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm
11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS11:-55dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm
11ax HE160_MCS0:-85dBm, 11ax HE160_MCS11:-55dBm
What's in the Box:
1 x Wi-Fi Router Archer AX3000
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
The TP-Link Archer AX3000 is a dual-band gigabit Wi-Fi 6 router designed for homes. It's easy to set up and use, perfect for streaming 8K/4K content and gaming. With 4 antennas and Beamforming technology, it provides strong, focused signals. The router is backward compatible and features OFDMA for multiple device connectivity. It has dimensions of 6.5 x 6.2 x 1.8 inches and comes with a power adapter, Ethernet cable, and quick installation guide.
