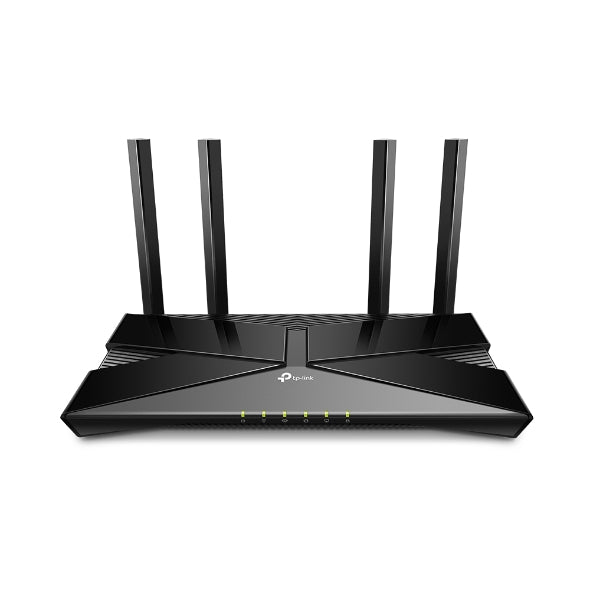

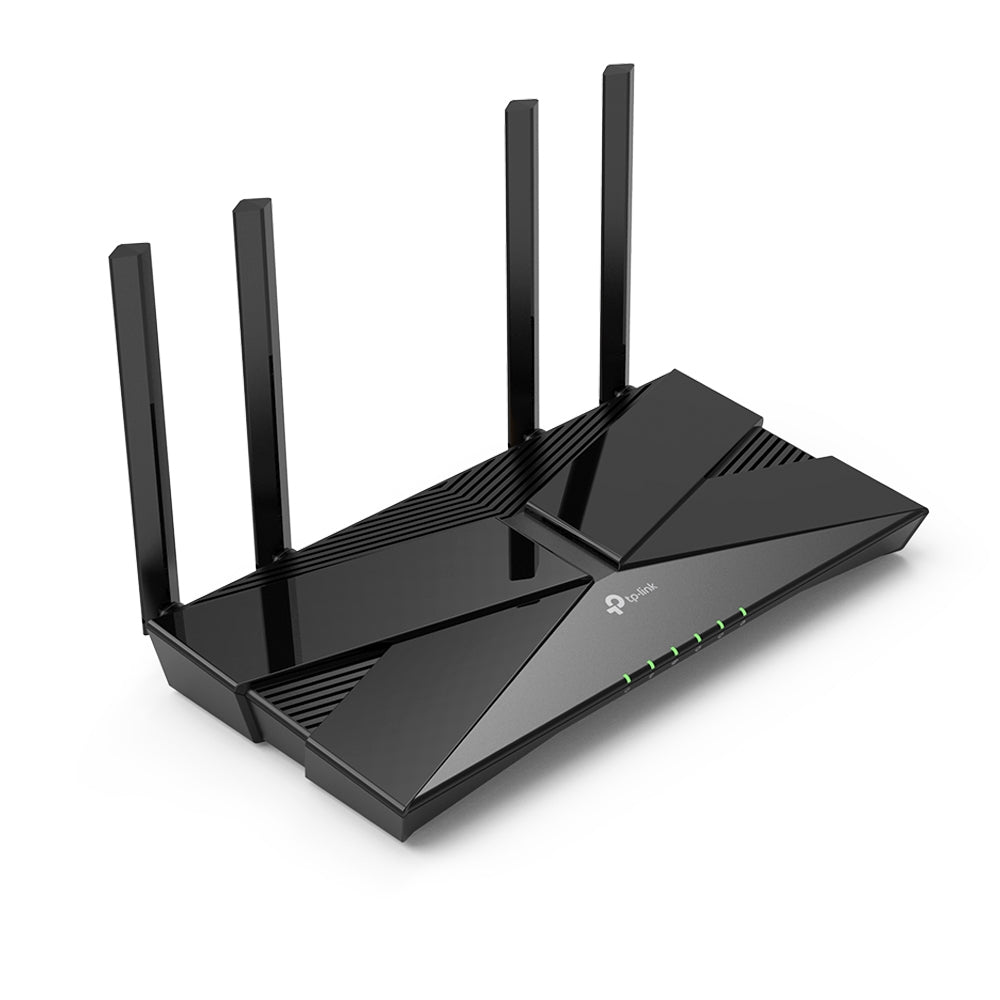

TP-Link Archer AX1800 Wi-Fi 6 Dual Band Router
Upgrade your home network with the TP-Link Archer AX1800 Wi-Fi 6 router. Enjoy blazing-fast speeds, seamless connectivity, and enhanced security for all your smart devices.
• Blazing-Fast Speeds: Experience 52% faster speeds and 25% improved efficiency, allowing you to download movies in seconds and stream with zero lag.
• Extended Range: The 4 high-performance external antennas and Beamforming tech ensure strong, stable signals throughout your home, even in the remotest corners.
• Seamless Roaming: Integrate with TP-Link OneMesh extenders for seamless, smooth roaming between signals, providing a consistent Wi-Fi experience.
With features like WPA3 cyber security, universal ISP support, and easy setup with the Tether App, the Archer AX1800 is the ultimate choice for your home network.
Features:
- Upgrade every smart gadget to faster speeds, higher capacity and minimal lag
- 1.8 Gbps super-fast Wi-Fi downloads movies in a matter of seconds
- Reaches out to the remotest wi-fi dead zones
- WPA3 cyber security for enhanced protection
- Universal ISP support extends to multiple devices
- Easy to set up and easier to use with Tether App
Specifications:
WIRELESS
Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
Wi-Fi Speeds: AX1800, 5 GHz: 1201 Mbps (802.11ax, HE160), 2.4 GHz: 574 Mbps (802.11ax)
Wi-Fi Range:
2-3 Bedroom Houses
4 x Fixed High-Performance Antennas
Multiple Antennas form a signal-boosting array to cover more directions and larger areas
Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range
Wi-Fi Capacity:
High
Dual-Band
Allocate devices to different bands for optimal performance
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth
Working Modes: Router Mode, Access Point Mode
HARDWARE

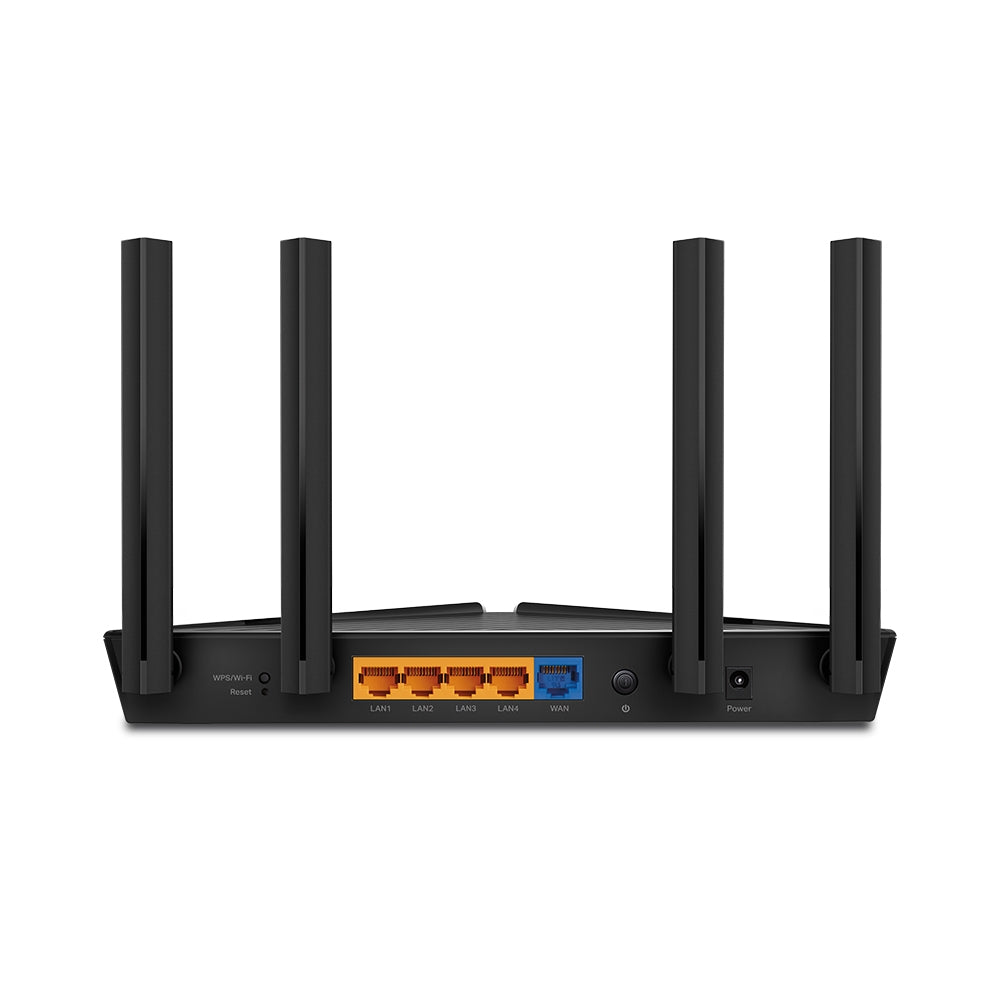

Ethernet Ports: 1 x Gigabit WAN Port, 4 x Gigabit LAN Ports
Buttons: WPS Button/Wi-Fi button, Power On/Off Button, Reset Button
Power: 12 V 1 A
SECURITY
Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Guest Network: 1¡Á 5 GHz Guest Network, 1¡Á 2.4 GHz Guest Network
VPN Server: OpenVPN, PPTP
SOFTWARE
Protocols: IPv4, IPv6
OneMesh : OneMesh Supported, Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls: URL Filtering, Time Controls
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service: QoS by Device
Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS
NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Servers
IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP: Address Reservation, DHCP Client List, Server
DDNS: TP-Link, NO-IP, DynDNS
Management: Tether App, Webpage
OTHERS
Dimensions (W¡ÁD¡ÁH): 10.2 ¡Á 5.3 ¡Á 1.5 in
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
Operating Temperature: 0¡æ~40¡æ (32¨H ~104¨H)
Storage Temperature: -40¡æ~70¡æ (-40¨H ~158¨H)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
Wi-Fi Transmission Power:
CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
FCC:
<30dBm{2.4GHz & 5.15GHz~5.25GHz&5.725GHz~5.825GHz }
Wi-Fi Reception Sensitivity:
EU Version
2.4GHz:
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
5GHz:
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
Wi-Fi Reception Sensitivity:
US Version
2.4GHz:
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
5GHz:
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT40_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm
What's in the Box:
1 x Wi-Fi Router Archer AX23
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
The TP-Link Archer AX1800 is perfect for families and individuals looking to upgrade their home network. With its high-performance external antennas and Beamforming tech, it can cover homes with 2-3 bedrooms. It has dimensions of 10.2 x 5.3 x 1.5 inches and operates within the temperature range of 0°C to 40°C (32°F to 104°F) with a humidity range of 10% to 90% non-condensing. Enjoy seamless entertainment with faster speeds, extended range, and enhanced security.
