TP-Link Archer AX6000 Wi-Fi 6 Router - Next-Gen Connectivity
Upgrade your home network with the TP-Link Archer AX6000. Boasting Next-Gen 802.11ax Wi-Fi technology, this router delivers blazing speeds and seamless connectivity for all your devices.
• Next-Gen 802.11ax Wi-Fi technology for speeds up to 5952 Mbps
• OFDMA and MU-MIMO tech for efficient multi-device connectivity
• 1.8GHz 64-bit Quad-core processor for stable performance
With features like OneMesh technology for seamless roaming and advanced security with TP-Link HomeCare, the Archer AX6000 is the ultimate choice for your home network.
Features:
- Seamless roaming with intelligent connection for optimal usage of airtime
- AI Driven OneMesh constantly learns and dynamically improves Wi-Fi experience
- Achieve blazing speeds of up to 5952 Mbps
- Highly efficient OFDMA to handle high density scenarios
- Easy to set up, easier to use with Tether app
- Sophisticated Wi-Fi dead zone killer
- Provides lightning fast wired connections
- 24 hours HomeCare to protect your network against threats
Specifications:
WIRELESS
Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz
Wi-Fi Speeds: AX5400, 5 GHz: 4804 Mbps (802.11ax, HE160), 2.4 GHz: 1148 Mbps (802.11ax)
Wi-Fi Range:
4 Bedroom Houses
8 ¡Á Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand Wi-Fi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
Wi-Fi Capacity:
Very High
Dual-Band
Allocate devices to different bands for optimal performance
4¡Á4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth
Working Modes: Router Mode, Access Point Mode
HARDWARE
Processor: 1.8 GHz 64 Bit Quad-Core CPU

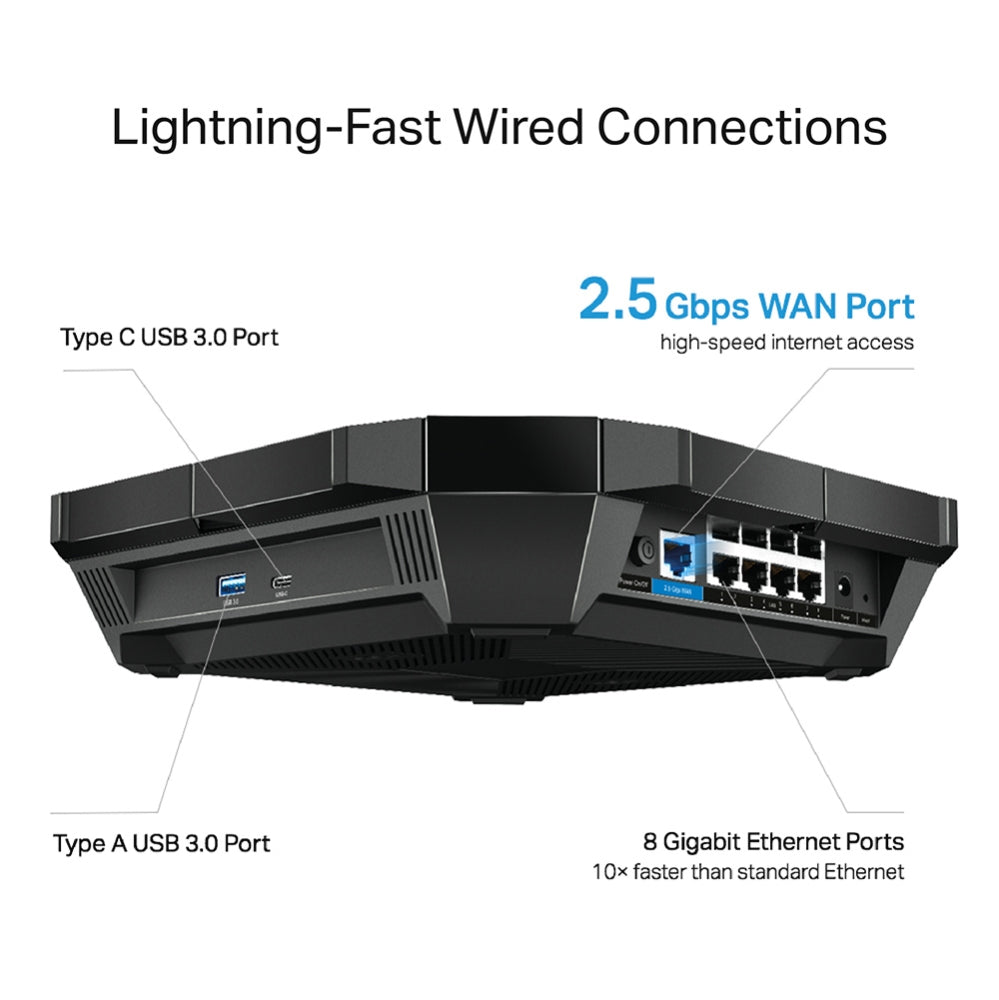

Ethernet Ports: 1¡Á 2.5 Gbps WAN port, 8 x Gigabit LAN Ports, Static Link Aggregation (LAG) available with 2 x LAN Ports
USB Support: 1¡Á USB-C 3.0 Port, 1 x USB-A 3.0 Port, Supported Partition Formats - NTFS, exFAT, HFS+, FAT32,
Supported Functions - Apple Time Machine, FTP Server, Media Server, Samba Server
Buttons: Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button
Power: 12 V 4 A
SECURITY
Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer, Gateway
HomeCare Antivirus: Malicious Site Checker, Port Intrusion Prevention, Infected Device Location, Notification and Log
Guest Network: 1¡Á 5 GHz Guest Network, 1¡Á 2.4 GHz Guest Network
VPN Server: OpenVPN, PPTP
SOFTWARE
Protocols: IPv4, IPv6
Service Kits: HomeCare
OneMesh : OneMesh Supported, Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
Parental Controls: HomeCare Parental Controls, Custom Profiles, Content Filtering, App Block, URL Filtering, Time Limit, Time Schedule (Bed Time), Log Insight
WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service: QoS by Device, HomeCare QoS - QoS by application
Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS
NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
DHCP: Address Reservation, DHCP Client List, Server
DDNS: TP-Link, NO-IP, DynDNS
Management: Tether App, Webpage
OTHERS
Dimensions (W¡ÁD¡ÁH) 10.3 ¡Á 10.3 ¡Á 2.4 in
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
Operating Temperature: 0¡æ~40¡æ (32¨H ~104¨H)
Storage Temperature: -40¡æ~70¡æ (-40¨H ~158¨H)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
Wi-Fi Transmission Power:
CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
Wi-Fi Reception Sensitivity:
2.4GHz:
11g 6Mbps:-97dBm,11a54MBps:-79dBm
11n HT20 MCS0:-97dBm,11n HT20 MCS7:-78dBm
11n HT40 MCS0:-95dBm,11n HT40 MCS7:-75dBm
11ac VHT20 MCS0:-96dBm,11ac VHT20 MCS11:-67dBm
11ac VHT40 MCS0:-94dBm,11ac VHT40 MCS11:-64dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-62dBm
5GHz:11a 6Mbps:-97dBm,11a54MBps:-79dBm
11ac VHT20 MCS0:-97dBm,11ac VHT20 MCS11:-67dBm
11ac VHT40 MCS0:-95dBm,11ac VHT40 MCS11:-64dBm
11ac VHT80 MCS0:-92dBm,11ac VHT80 MCS11:-61dBm
11ac VHT160 MCS0:-87dBm,11ac VHT160 MCS11:-55dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-93dBm,11ax HE40 MCS11:-61.5dBm
11ax HE80 MCS0:-89dBm,11ax HE80 MCS11:-58.5dBm
11ax HE160 MCS0:-86dBm,11ax HE160 MCS11:-56dBm
What's in the Box:
1 x Wi-Fi Router Archer AX6000
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
The TP-Link Archer AX6000 is the ultimate Wi-Fi router for your home. With speeds of up to 5952 Mbps, seamless roaming, and advanced security, this router is perfect for families, gamers, and anyone who needs a reliable home network. It's easy to set up and use, and it comes with everything you need to get started. The router measures 10.3 x 10.3 x 2.4 inches and weighs [weight not provided]. It's compatible with a variety of devices and operating systems, and it's backed by a limited warranty.
