AlgoLaser 5W Diode Laser Engraver DIY Kit - Your All-in-One Creative Tool
This amazing DIY kit is a must-have for all your creative projects! Whether you're into home decoration, furniture making, or any other DIY tasks, this versatile tool has got you covered. It can cut through paper, wood, and various other materials with ease. With the option of both power supply and battery operation, it's super convenient for your daily use.
Here are the key features that make it stand out:
- Powerful Performance: Delivers a significant speed boost, achieving an impressive 32% higher CPU performance and 50% improved energy efficiency.
- Upgraded Motherboard: Improved performance, expanded storage with 8MB RAM, 8MB storage memory, and a built-in 32GB SD card.
- Strong Compatibility: Thanks to the upgraded motherboard, it's compatible with power up to 20w to satisfy more requirements. With Smart Hub and AUC, it can work with versatile accessories from different brands.
Specs & Features

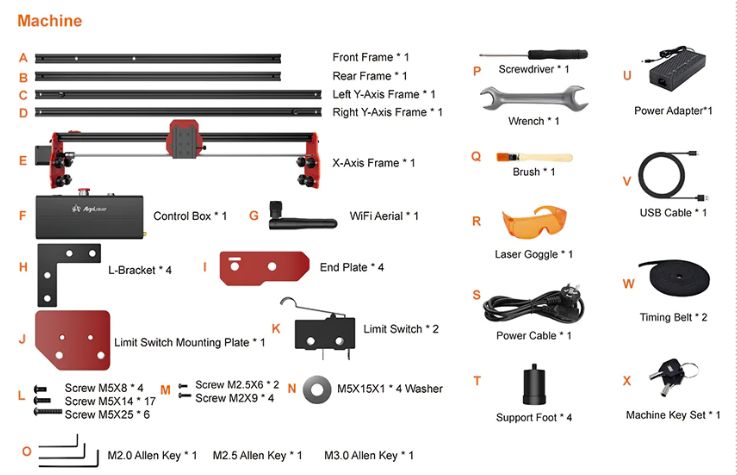

AlgoLaser DIYKIT Mechanical Frame
| Optical Power | 5W |
| Machine Power | 72W |
| Power Supply | 24V3A A MAX |
| Engraving Speed | 12,000mm/min |
| Spot Size | 0.04mm*0.09mm |
| Product Size | 642mm*602mm*146mm |
| Product Weight | 5.0kg |
| Laser Head Life Expectancy | >8000 hours |
| Certification | FCC/CE/RoHS/FDA |
| Warranty | 12 Months |
| Safety Features | Safety Lock (Keep the Key, Professional Use only), Gyroscope detection, Active Light Detection and Protection, USB Disconnect Shutdown, Voltage and Current Safety Control System, Emergency Stop Switch, Temperature Monitoring |
| Software and Connection | |
| System Supported | Android, iOS, Windows, Mac OS, Web-based |
| Control Software | AlgoLaser App / LightBurn/LaserGRBL |
| Compatible Accessories | 5W laser module, 10W laser module, Engraving Platform, Fireproof Box, Rotary Chuck, Rotary Roller |
| File Format Supported | JPG, SVG, PNG, BMP, G-code, CAD, AI, CDR, DWG, |

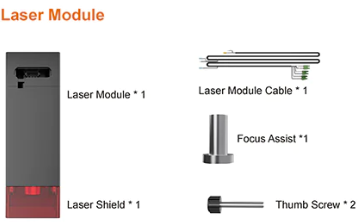

| Laser Head - AlgoLaser 5W | |
| Laser Module Size | 44mm*44mm*132mm |
| Optical Power Output | 5000mW(5W) |
| Laser Output Wavelenght | 455nm (+-5nm) |
| Focal Distance | 55 mm (From Module Radiator to Material) |
| Spot Size | 0.04mm*0.09mm |
| Spot Shape | Square |
| Operating Frequency | <30KHz |
| Operating Temperature | -10oC - +40o |
| Connectors Type | Data Line - PHB 2.0 4Pin, Laser Line - |
| Life Expectancy | >8,000 Hours |
| Optical Lense Material | Professional focusing optical glass (quartz glass), Multiple Optical Lens Assembly |
| Packaging | |
| Box Size | 66*31*33cm |
| Gross Weight | 5.0KGS |
The AlgoLaser 5W Diode Laser Engraver DIY Kit is perfect for anyone into DIY projects. Whether you're decorating your home, working on furniture, or any other creative task, this tool is for you. It can cut paper, wood, and more. It offers power supply and battery operation for convenience. Product size is 642mm*602mm*146mm and weighs 5.0kg. Comes with a 12-month warranty and has FCC/CE/RoHS/FDA certification. Supported systems include Android, iOS, Windows, Mac OS, and web-based. Compatible with various control software and accessories.
