Makeblock mBot Ranger Robot Kit (Bluetooth version)
Overview

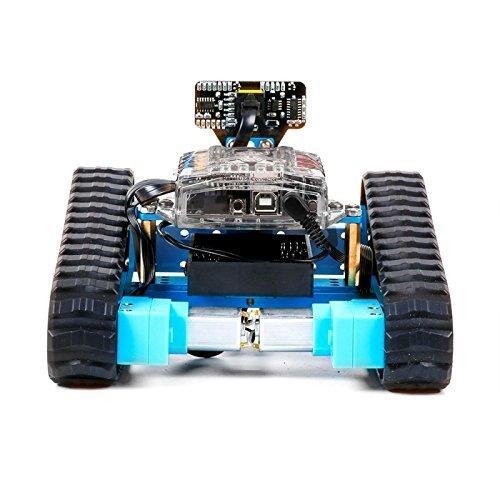

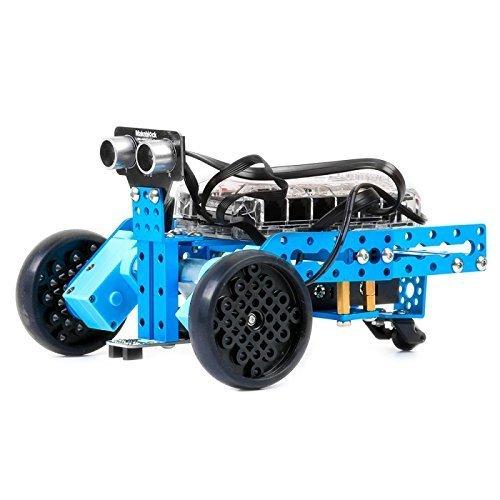

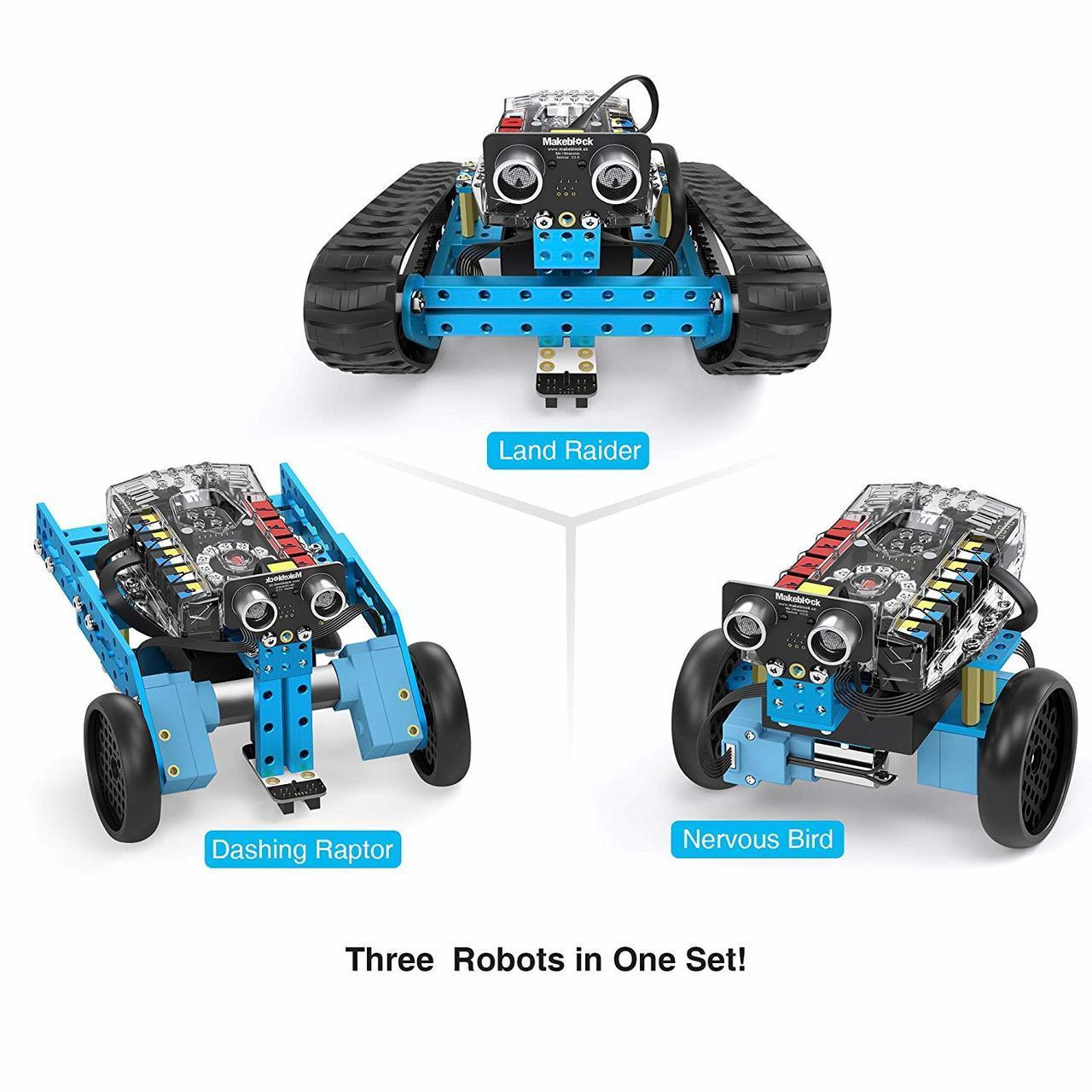

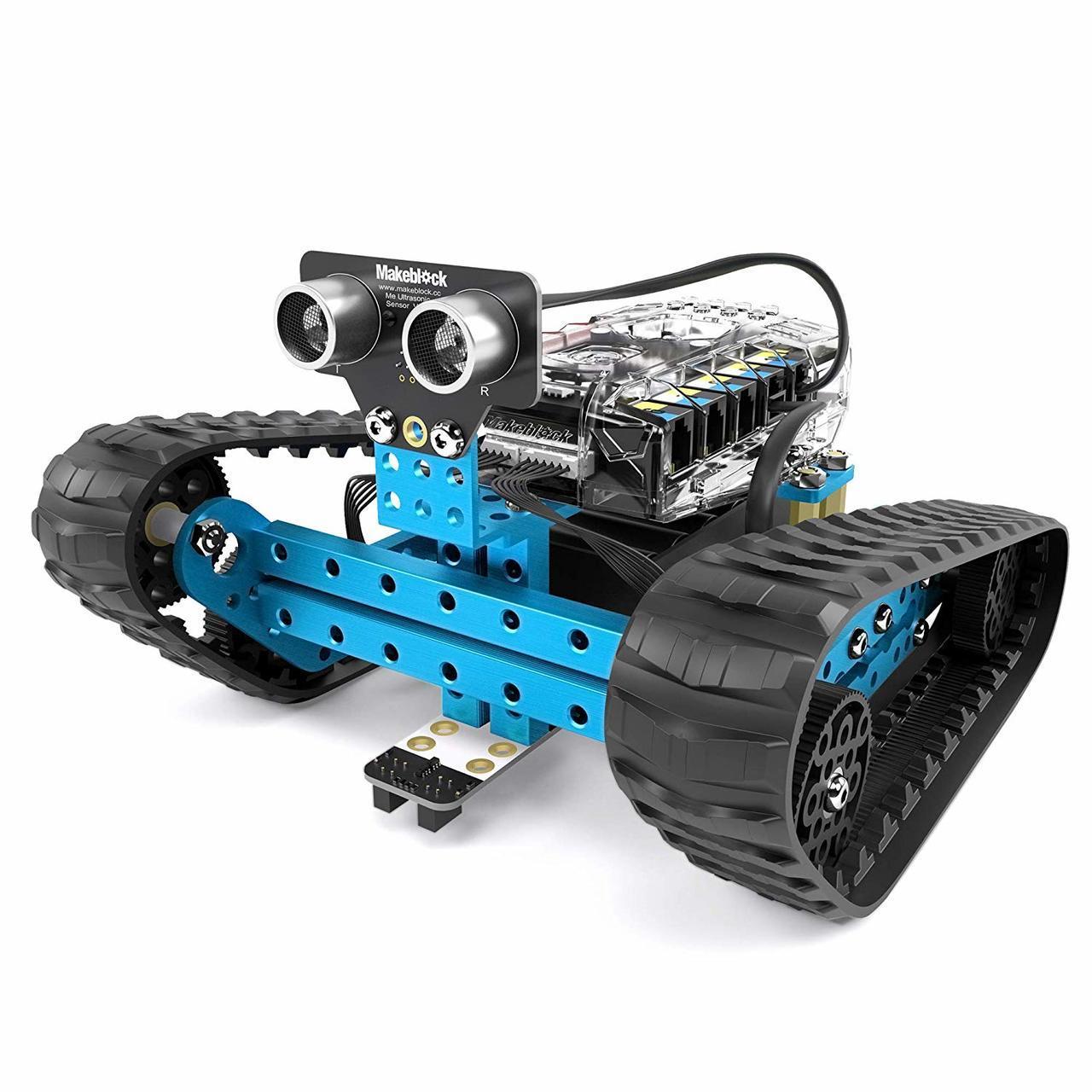

Conquer any terrain with mBot Ranger! This amazing kit transforms into three incredible robots: the tank-like Off-road Land Raider, the speedy three-wheel racing car Dashing Raptor, and the self-balancing Nervous Bird. With a wide range of sensors, including light, temperature, sound, ultrasonic, line follower, and gyroscope, mBot Ranger can collect data, follow lines, and avoid obstacles like a pro.
Software
Control and program your mBot Ranger with the standard app that comes with 3D Model Modelling Tutorials, Multiple Control Modes, and Lots of Add-on Packs. If you're new to coding, try the game-based app for robotics programming learning with a project-based free creative approach. For serious programmers, there's a powerful STEM education coding tool that teaches you the basics of Python programming language.
FAQ
Can mBot Ranger connect directly to my phone via Bluetooth
Yes, it connects directly with your phone or iPad via Bluetooth.
Does the coding software need to be purchased
No separate purchase is required, you can download software from our website for free.
Does any warranty come with mBot Ranger How long is the warranty period
mBot Ranger comes with a warranty ¨C for electronic parts, the warranty is for 6 months, while for electrical parts, the warranty is for 2 months. Other parts (structural parts, consumables and batteries), however, are not covered by any warranty but can be replaced if damaged.
Why doesn't my mBot Ranger respond when powered on
The possible reasons and solutions are as follow:
1. The supplied voltage may be too low to run the robot. Please charge the battery or replace with a fresh one.
2. The wires of the Motor Connector may be broken. Please try to replace the wires with new ones.
3. Try to reset your mBot Ranger to factory defaults.
When I control the Ranger to move forward or right, it moves backwards or left. How can I fix it
1. Swap the place of the M1 and M2 interface cables that are connected to the motors. See if your Ranger is now moving according to your controls.
2. If not, reset your mBot Ranger to factory defaults using the latest version of mblock 5.
How do I know when the robot needs a new battery
If any of the following happens, you will need to replace the battery:
1. If the Land Raider or Dashing Raptor moves very slowly or restarts itself while turning or bumping against objects.
2. If the Land Raider or Dashing Raptor remains motionless even if you set the motor speed to high speed.
What can I do if Self-Balancing Car doesn't work normally (for example, if it fails to balance or doesn't smoothly respond to commands)
The possible reasons and solutions are as follow:
1. Please check if the battery charge level is sufficient; if not, replace it.
2. Please check if the Self-Balancing Car is correctly assembled. Confirm that all the wheels are assembled correctly and that there is nothing obstructing its movements.
You can find user manual here.
