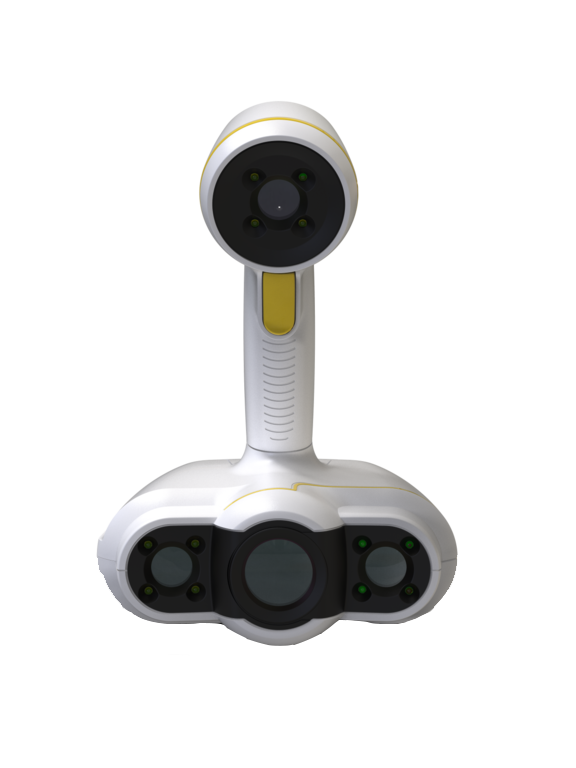

RobotLAB Peel 2 CAD 3D Scanner - Your Ultimate 3D Scanning Solution
Discover the future of 3D scanning with the RobotLAB Peel 2 CAD 3D Scanner! This fully-integrated, one-of-a-kind scanner delivers superior results every time, making it a must-have for anyone in the Maker space or involved in reverse engineering and prototype study.
• Easy to use: The hand-held design allows for free movement, ensuring you never miss a detail. Just point and scan!
• Superior accuracy: With up to 0.1mm accuracy, every scan is precise. Ideal for detailed work.
• Hassle-free operation: No prep work or prior knowledge needed. Automatically identifies shapes and scans smooth surfaces too.
The Peel 2 CAD 3D Scanner extracts every detail of the object scanned, from geometric entities to textures. Export the scanned data to your favorite CAD software like SOLIDWORKS, Inventor, or PTC for seamless collaboration and development.
Step 1: Move the scanner freely around the object to capture all details.
Step 2: Once the scan is on the screen, easily fine-tune and export it to your preferred CAD software.
Step 3: Extract details such as geometric entities, surfaces, cross-sections, and textures.
Step 4: Export the prototype to your chosen CAD software for collaborative study and development.
SPECIFICATIONS:
Warranty: 1 Year with RobotLAB Support
Part size range (recommended): 0.3 ¨C 3.0 m (1 ¨C 10 ft)
Impressive Accuracy: Up to 0.1mm (0.004 in)
Mesh resolution: 0.500 mm (0.020 in)
Measurement resolution: 0.250 mm (0.010 in)
Measurement rate: 550,000 measurements/s (1)
Volumetric accuracy (based on part size): 0.300 mm/m (0.0036 in/ft)
Scanning area: 380 x 380 mm (15.0 x 15.0 in)
Stand-off distance: 400 mm (15.75 in)
Depth of field: 250 mm (10.0 in)
Light source: White light (LED)
Colors: 24 bits
Texture resolution: 50 to 150 DPI
Positioning methods: Geometry and/or targets and/or texture
Connection standard: 1 x USB 2.0
Output formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Operating temperature range: 5¨C40¡ãC (41¨C104¡ãF)
Operating humidity range (non-condensing): 10¨C90%
Certifications: EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE
Weight: 2.1 lbs
Dimensions: 5.9 x 6.73 x 9.88 in
WHAT'S IN THE BOX:
1 x Peel 2 CAD 3D Scanner
1 x Power Supply
1 x USB Cable
1 x Positioning Targets (Regular and Adhesive)
1 x Rugged Transport Case
1 x User Manual
The RobotLAB Peel 2 CAD 3D Scanner is perfect for makers, engineers, and designers. It's easy to use, accurate, and hassle-free. Ideal for creating 3D models, reverse engineering, and prototyping. Measures 5.9 x 6.73 x 9.88 in and weighs 2.1 lbs. Comes with a 1-year warranty and all the necessary accessories.
